Air Handling Units & Boilers

With ever greater constraints on space in places such as data centres and server rooms the AHU range has been designed using our vast experience in portable cooling equipment to minimise the amount of floor space they need.  Both units feature massively reduced footprints and are small enough to fit through a standard doorway whilst the ErP compliant fans ensure maximum energy efficiency to meet and exceed modern demands.  Condensate pumps, three way valves and thermostatic control are all fitted as standard and the multi-speed fans include a whisper quite setting for use at events or quiet environments.

The WB22 offers everything a traditional central heating boiler but in a portable format, allowing companies the option providing of central heating at events, testing underfloor heating systems before laying the floor or to speed up the drying out of a concrete floor after it has been laid.  The latest version includes a fully programmable digital control for staged heating and separate sockets for use on a variety of different electrical supplies while a separate hot water kit is also available to provide a water for washing etc.  Fully tested for electrical and pressure safety the WB22 also boasts a range of safety measures for peace of mind.

Portable boilers are fantastic for testing underfloor heating, drying concrete, and of course supplying hot water and central heating.

Fully serviceable equipment

Full spare parts availability

Full technical support

2-year warranty

Fully Programmable Electric Boiler – WBSD

Say goodbye to daily site visits to adjust the temperatures of your boiler as it dries a screed floor. The new WB Programmable range of boilers can be pre programmed before leaving the depot to increase and decrease the water temperature as required, meaning all you have to do on site is plug it in and leave it to get on with the job.

Once up and running the colourful LCD screen displays exactly what’s happening and how far through the program it is. On top of all that there’s battery backup memory that ensures the program picks up where it left off in the event of a power cut, a frost protection function, temperature probe failure warning and even a fully manual setting. As with our original WB22 these new versions have a full range of safety features for peace of mind.

22kW to 36kW versions available

Portable Boiler – WB22

  • 22kW boiler
  • Will run on a variety of supplies
  • Digital Control
  • Safety features

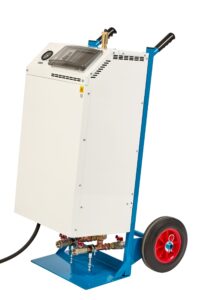

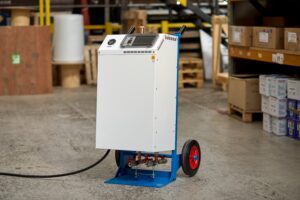

The WB22. A fully portable 22kW boiler that can be used for drying concrete flooring, testing underfloor heating and providing hot water and central heating. The fully programmable digital control allows output to be tailored to suit the application and a number of electrical sockets allow it to be used on a variety of electrical supplies. Comes complete with pump, trolley and safety features including expansion tank, high pressure cut out and over temperature cutout.

Air Handling Unit – AHU30

  • 30kW Cooling
  • 60kW Heating
  • 230V 13A supply
  • 3 fan speeds
  • Thermostat
  • Condensate pump

Specially designed for use in places where space is a premium the AHU30 can deliver 30kW of cooling from a footprint of just 58.5cm x 42.5cm and can be used with any existing chiller or heat pump.   Thanks to its size and weight compared to traditional 30kW units the AHU30 can be installed with just a single operative and a sack truck instead of forklifts or heavy installation gear.  Multiple fan speeds and thermostatic control allow performance to be tailored to suit  any application.

Air Handling Unit – AHU50

  • 50kW Cooling
  • 100kW Heating
  • 230V 13A supply
  • 3 fan speeds
  • Thermostat
  • Condensate pump

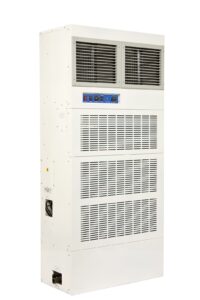

Specially designed for use in places where space is a premium the AHU50 can deliver 50kW of cooling from a footprint of just 80cm x 42.5cm and can be used with any existing chiller or heat pump.   Thanks to its size and weight compared to traditional 50kW units the AHU50 can be installed without the need for forklifts or heavy installation gear.  Multiple fan speeds and thermostatic control allow performance to be tailored to suit  any application.
